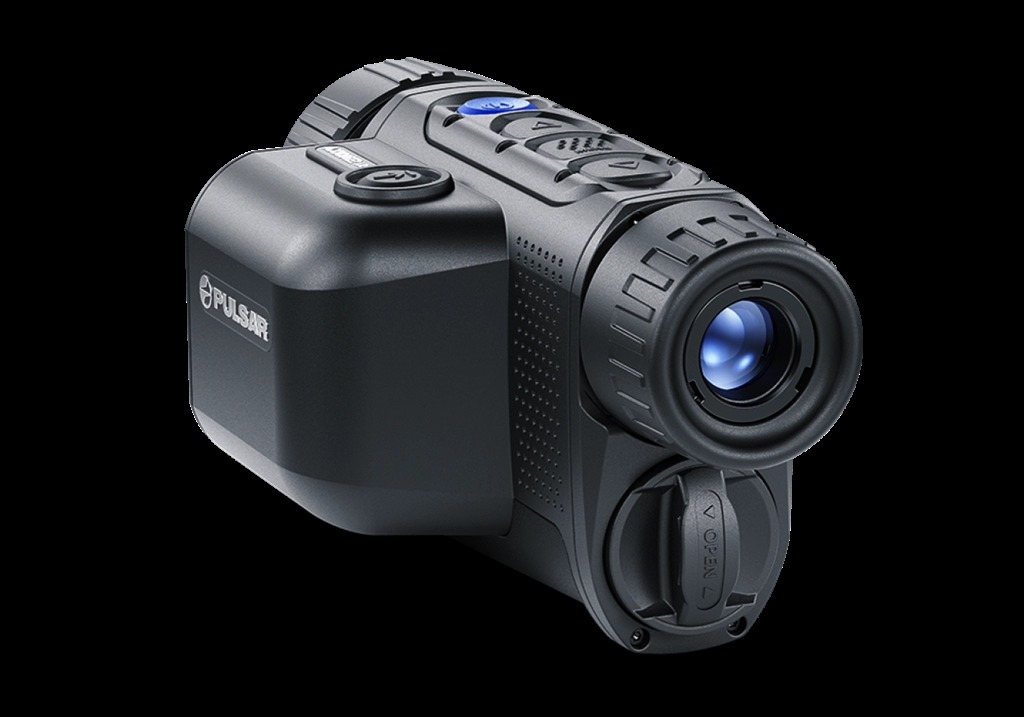

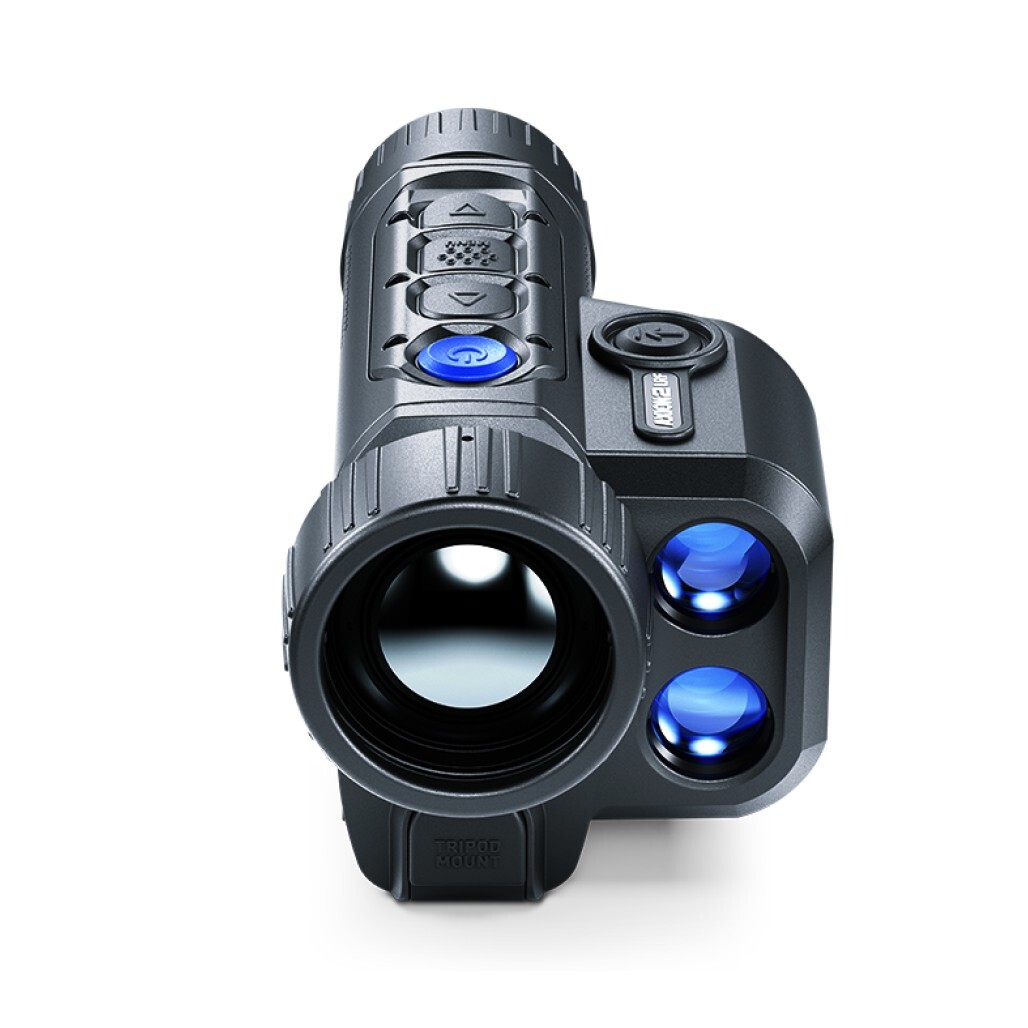

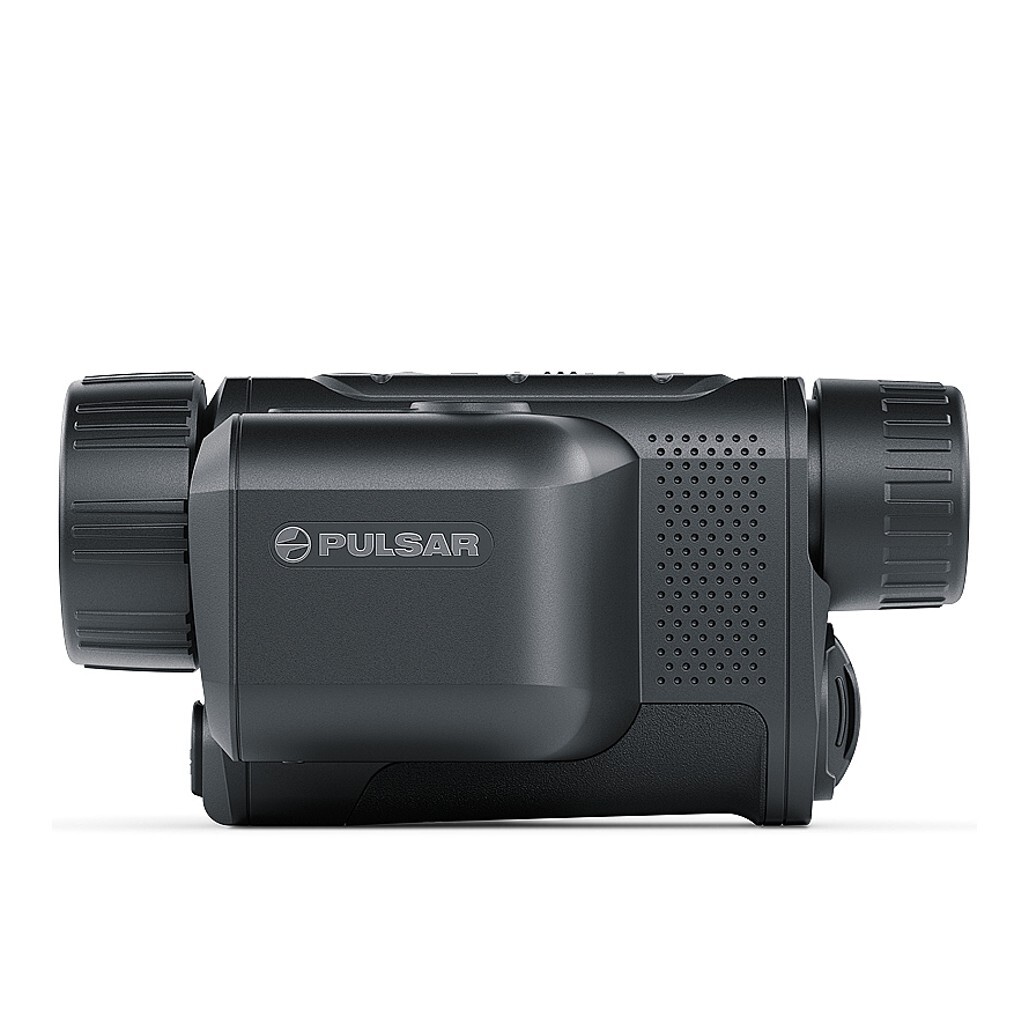

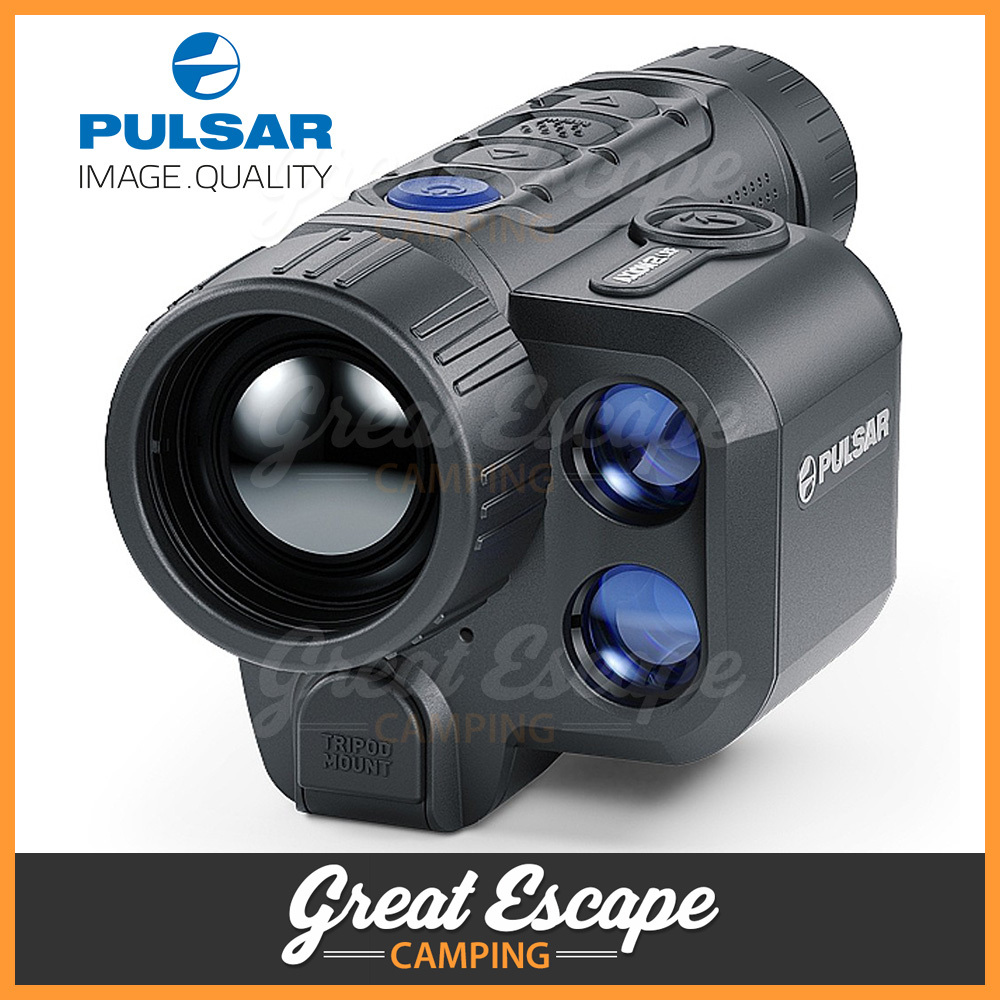

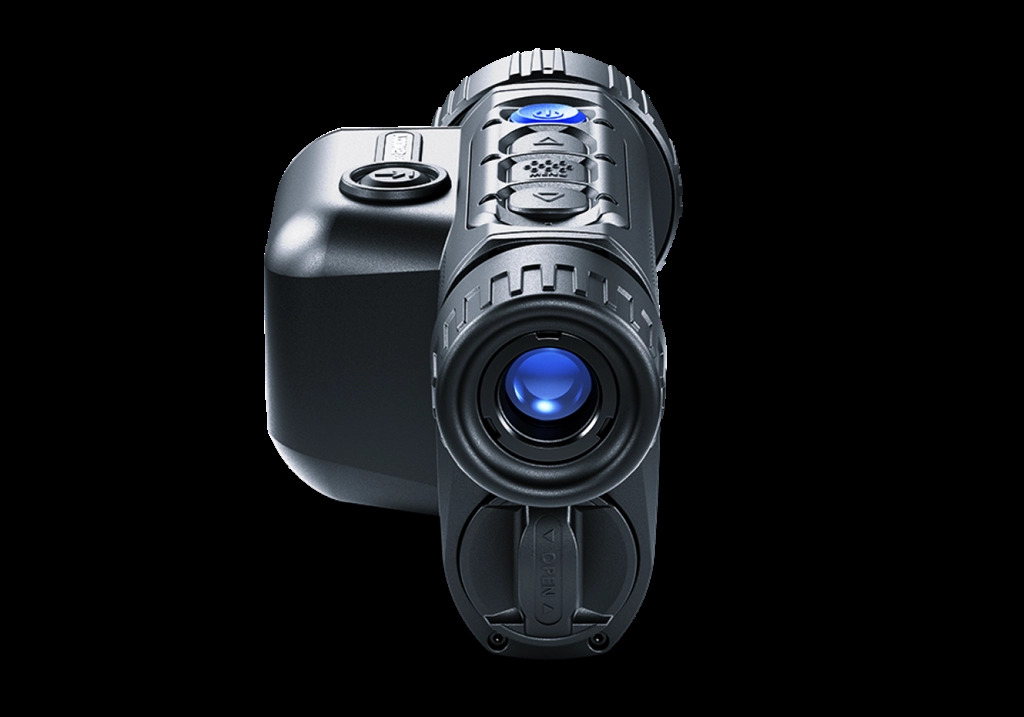

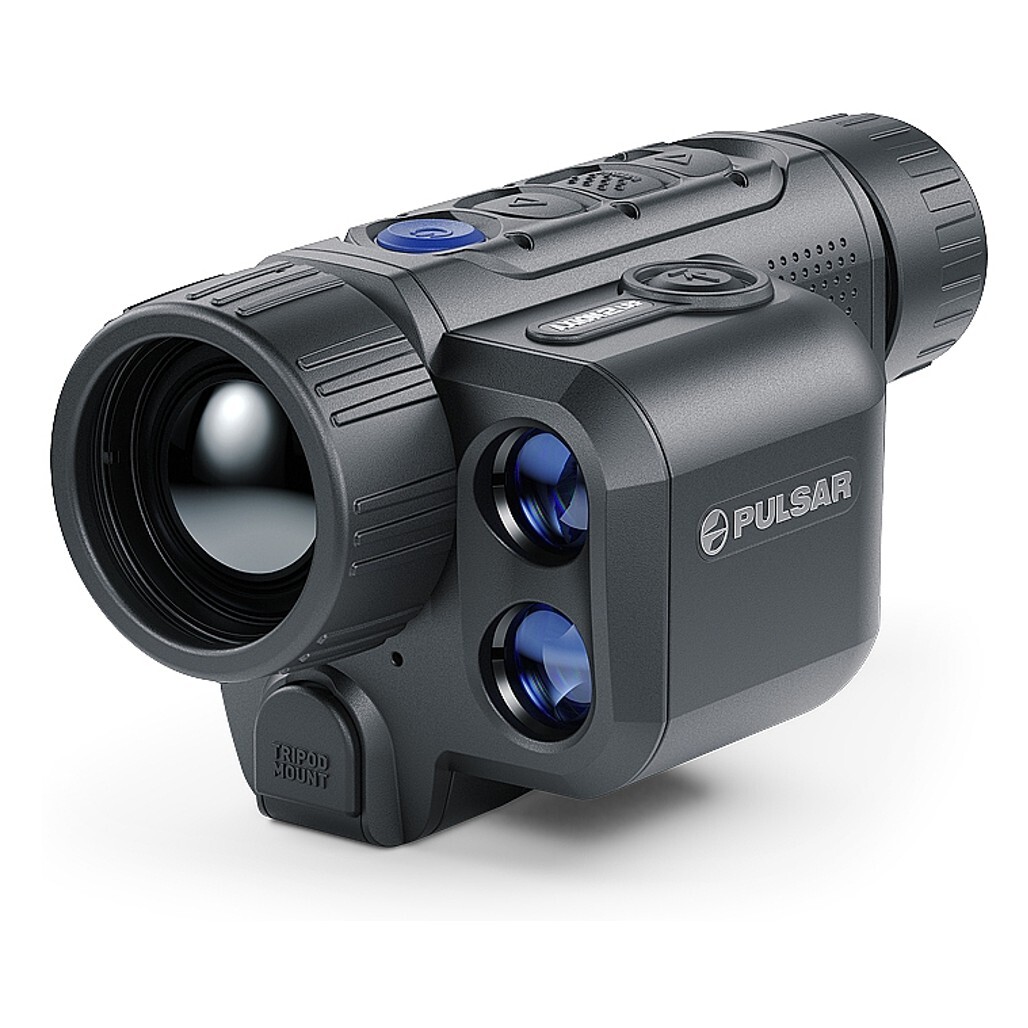

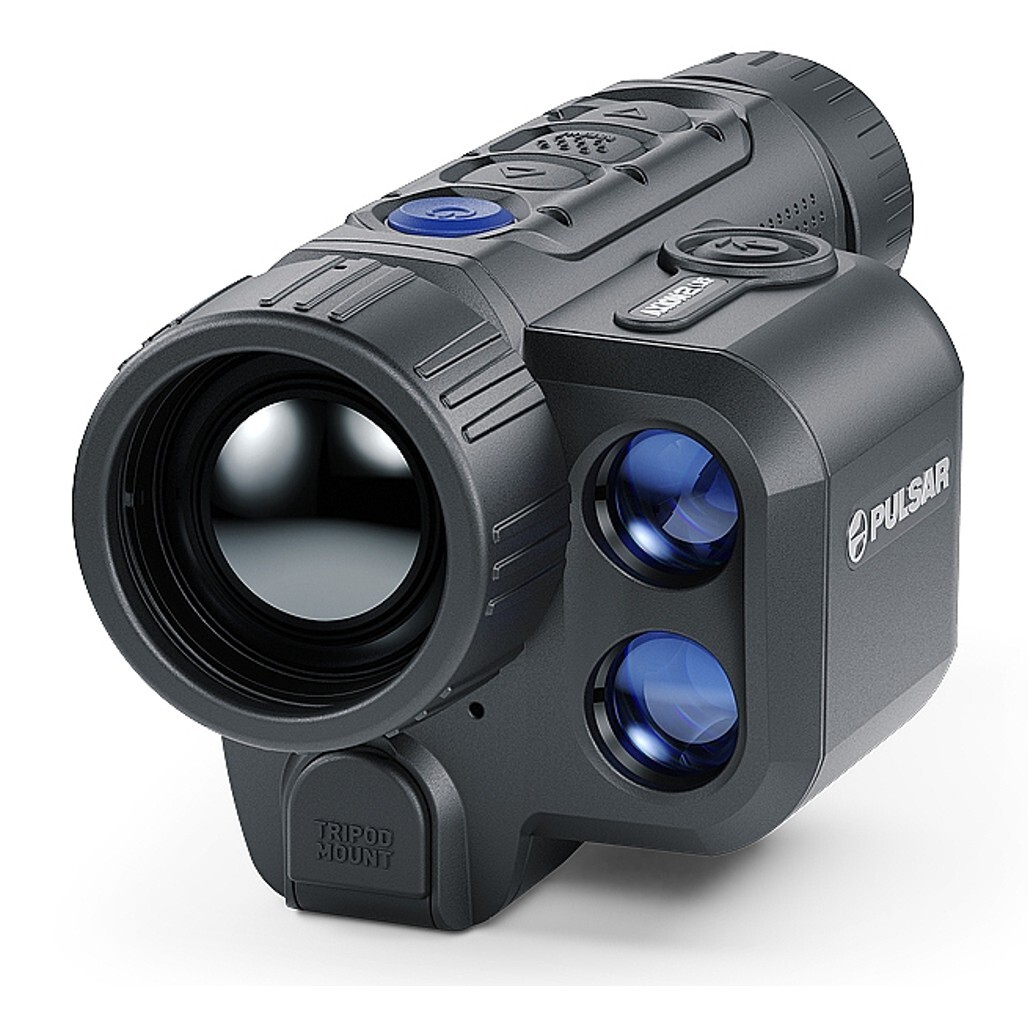

Pulsar Axion 2 LRF XG35 Thermal Monocular



The Axion 2 LRF XG35 comes equipped with a clear 35mm f/1 lens to capture thermal signatures. The FOV on this thermal monocular measures 12.5 x 9.4 degrees. It comes with a 8x digital zoom to get additional details. It has an eye relief distance of 14mm.

Inside the housing of the Axion 2 LRF XG35 you'll find the (uncooled, 12µm) 640 by 480 pixel thermal sensor with a refresh rate of 50Hz. The NETD of this thermal monocular is <40mK.

The measurements of this thermal monocular are 152 x 74 x 75mm (l/w/h) and weighs 350g. This device is rated IPX7. It's protected against dust, shocks, water (splashes) and submersion under water. It handles temperatures between -25°C and 40°C.

The Axion 2 LRF XG35 is built for surveillance and hunting trips.



Features

Integrated LRF (Laser Range Finder)

Small and lightweight

Up to 11 hours battery life

AMOLED Display

8 color palettes

Built-in photo and video recorder

WiFi Streaming

IPX7 Fully Waterproof



DRI Ranges

DRI stands for Detection, Recognition and Identification and is based on the widely used Johnson's criteria.

Detection Detect if an object is present

Recognition See what type of object it is (i.e. person, vehicle, airplane)

Identification For example see if someone is a friend or foe



                 Detection    Recognition    Identification

Rabbit    525 meters    131 meters    65 meters

Person    1847 meters    461 meters    230 meters

Vehicle    4472 meters    1118 meters    559 meters



Specifications

Lens 35 mm

Eye relief distance 14 mm

Optical zoom 2.5 x

Digital zoom 8 x

FOV (h/v) 12.5 ° / 9.4 °

Sensor resolution (h/v) 640 pixels / 480 pixels

Pixel pitch 12 µm

Sensitivity 40 mK

Display resolution (h/v) 1024 pixels / 768 pixels

Refresh rate 50 Hz

Dimensions (l/w/h) 152 mm / 74 mm / 75 mm

Weight 350 g
