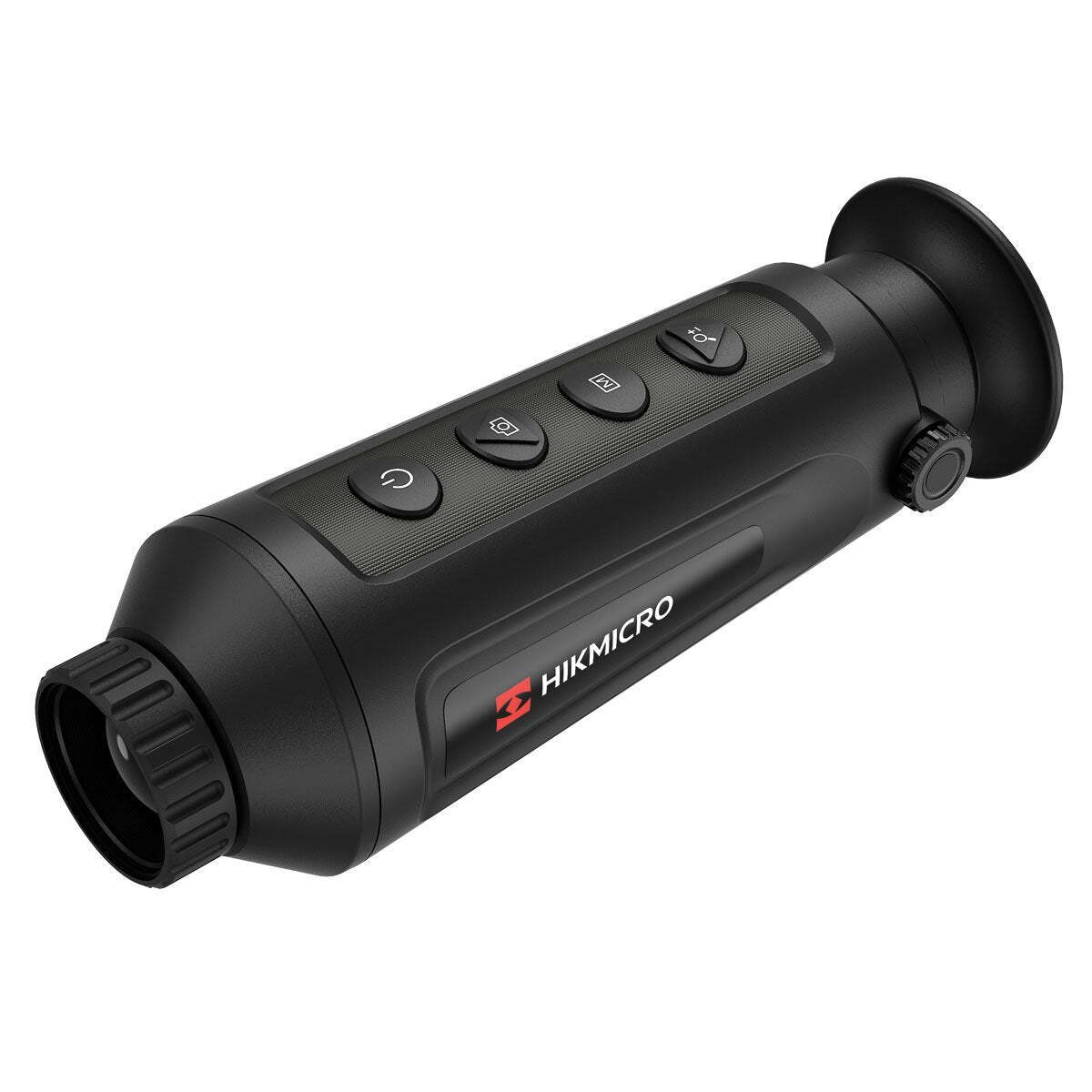

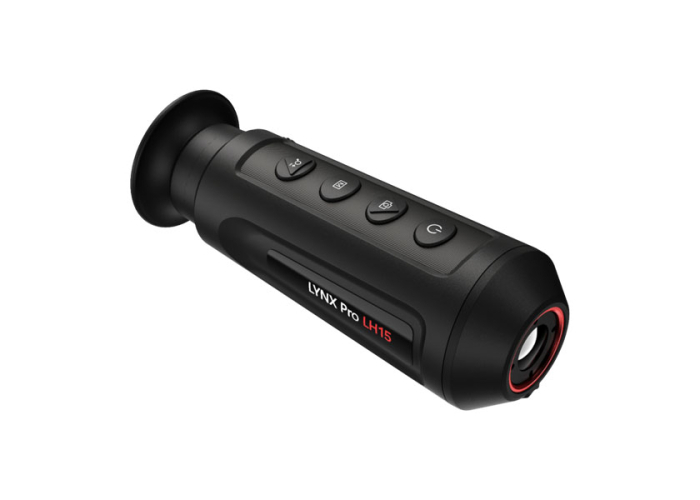

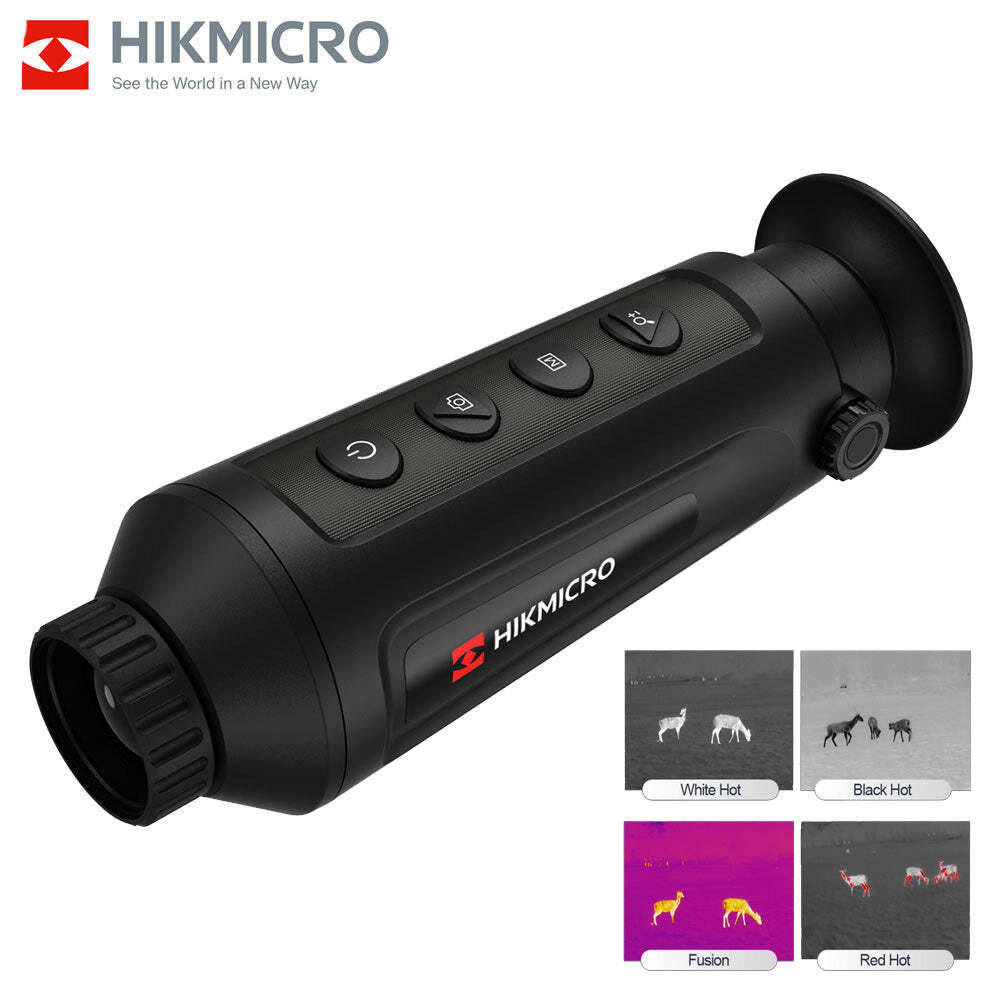

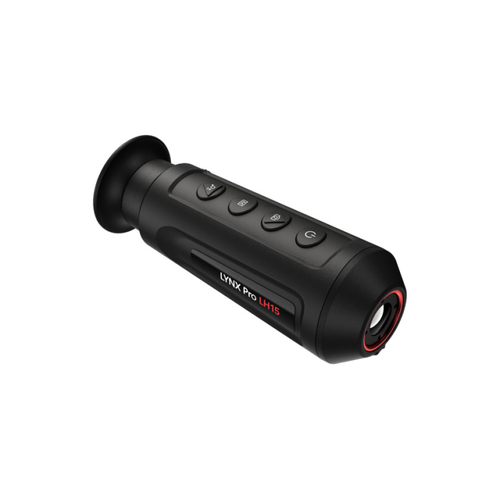

HIKMICRO Lynx Pro LH15 Thermal Monocular

The Lynx Pro LH15 packs a quality 15mm f/1 lens to capture thermal radiation. The field of view (FOV) on this thermal monocular reads 17.5 x 13.1 degrees. It's equipped with a 8x digital zoom to capture additional details.

Inside the housing of the Lynx Pro LH15 you'll find the (uncooled, 12µm) 384 by 288px sensor with a refresh rate of 50Hz. The NETD (Noise Equivalent Temperature Difference) of this thermal monocular is <35mK.

The dimensions of this thermal monocular are 158.3 x 61 x 57mm (length/width/height) and weighs in at 290g. This device is rated IP67. It can withstand dust, shocks, water (splashes) and submersion under water. Operating temperatures range between -20°C and 55°C.

The Lynx Pro LH15 can be used for surveillance missions and hunting.

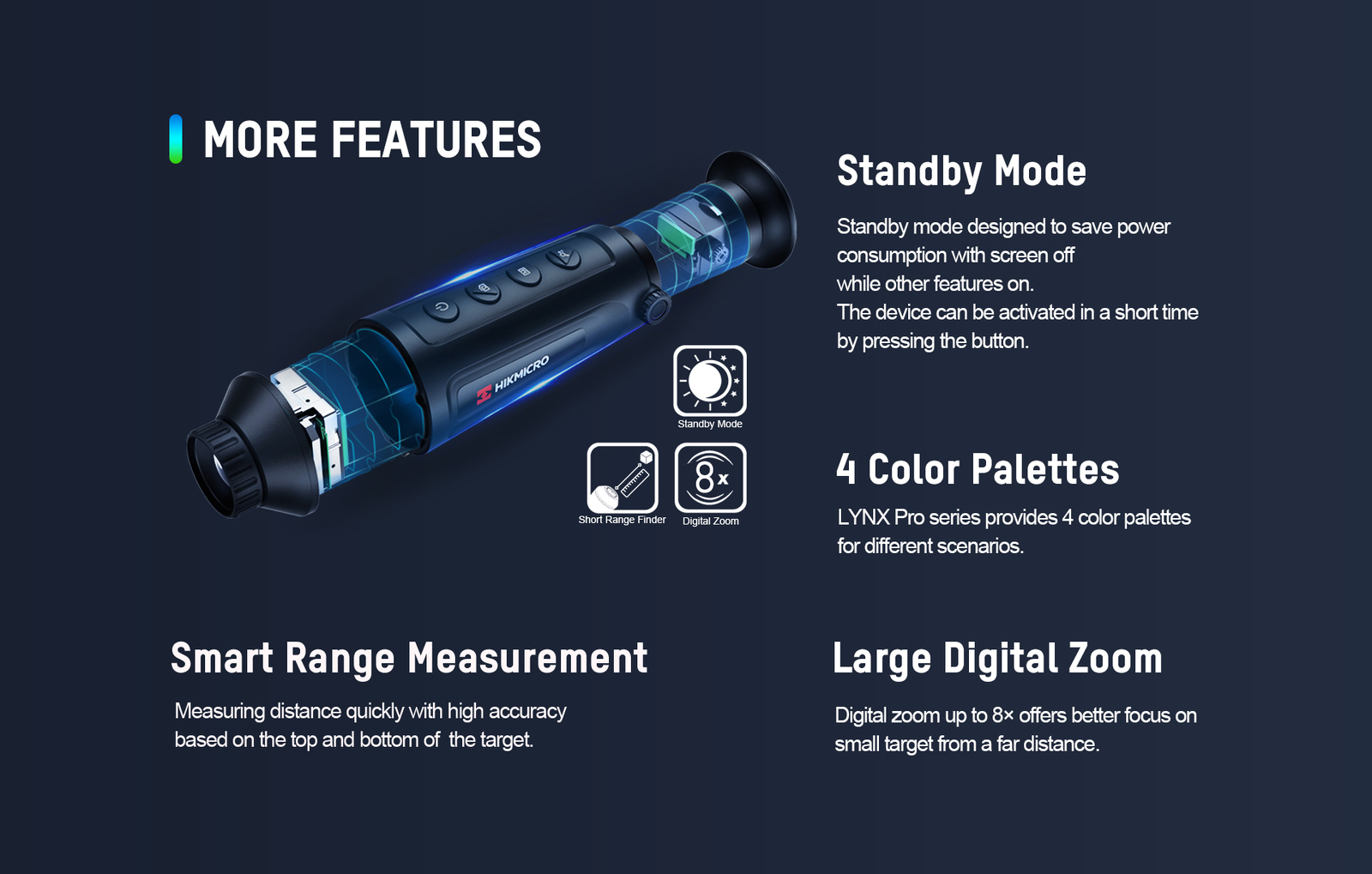

Features

12µm Sensor (35mK NETD)

Small and lightweight

Stadiametric Rangefinder

WiFi Streaming

Onboard video recording

Up to 8x Digital Zoom

Specifications

Dimension 15.8cm x 6.1cm x 5.7cm

Weight 290g

Battery life 7.5 hours

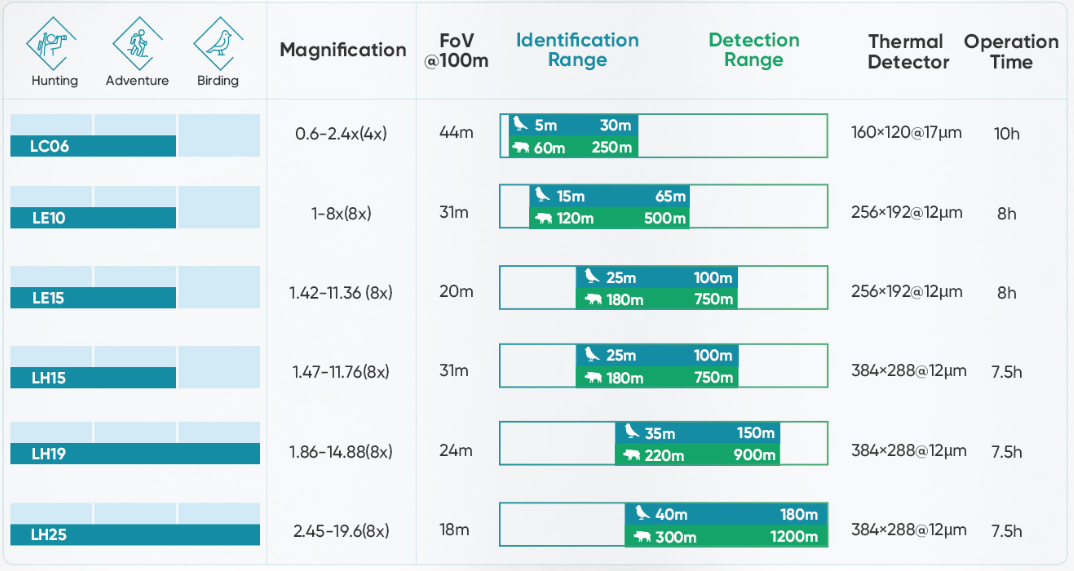

DRI Ranges

DRI stands for Detection, Recognition and Identification and is based on the widely used Johnson's criteria.

Person Size Object

Detection Range 791 meters

Recognition Range 197 meters

Identification 98 meters
