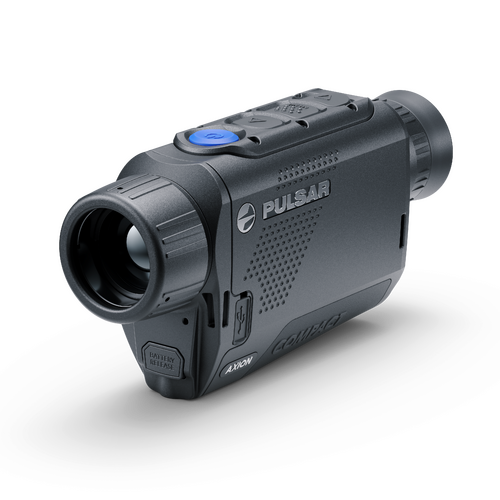

Pulsar Axion Compact XG30 Thermal Monocular

The Pulsar Axion XG30 Compact is a great tool for close-range observation in areas with thick vegetation.

Specifications

Sensor 640 x 480 @ 12 µm

Magnification x2 – 16 (x8 zoom)

FOV (HxV) 25.6 x 16.0m@100m

Detection range 1300

System NETD < 25mK

Pulsar APS 3 Li-Ion Battery

Run time on battery  7h

Dimensions 144 x 41 x 69mm

Weight 0.25kg (without battery)

High-quality reinforced magnesium alloy housing

Axion is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, a metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Improved Wi-Fi connectivity with 2.4 / 5 GHz waveband support

In Axion 2 XG thermal imagers, the standard smartphone connection frequency range via a 2.4 GHz WiFi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.

 Variable magnification from 2x to 8x

Digital zoom, up to 4x, provides improved focus and better overall object recognition at significant distances. The zoom changes either gradually in 2x step or continuously for a truly optimum, customized field of view for specific situation.

Pocket-sized dimensions and light weight

Axion 2 XQ has a space-saving and pocket-sized design and weighing 350 grams. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical design and in-line buttons arrangement on the upper panel.

High-contrast AMOLED Display

A high-contrast VGA-resolution AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

IPX7 Fully Waterproof

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.
