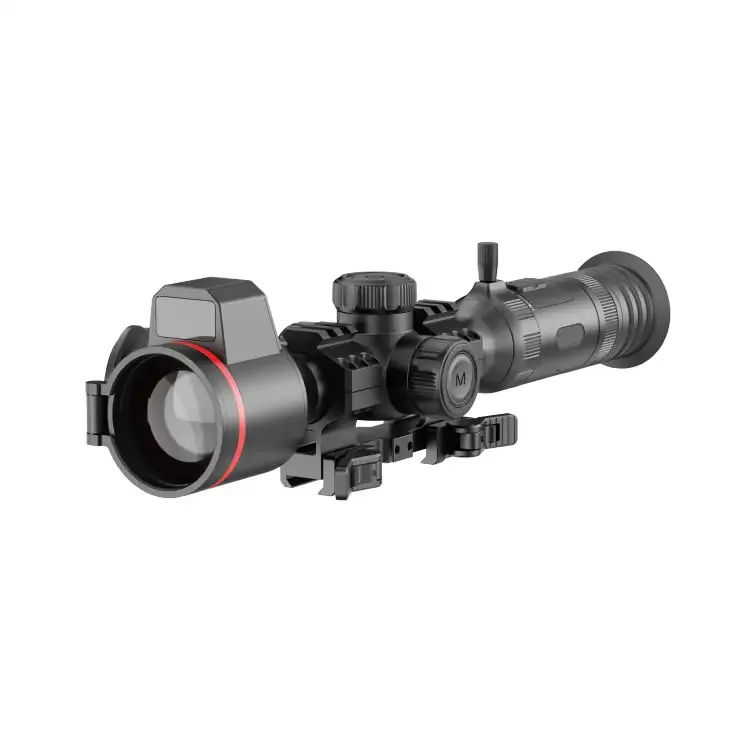

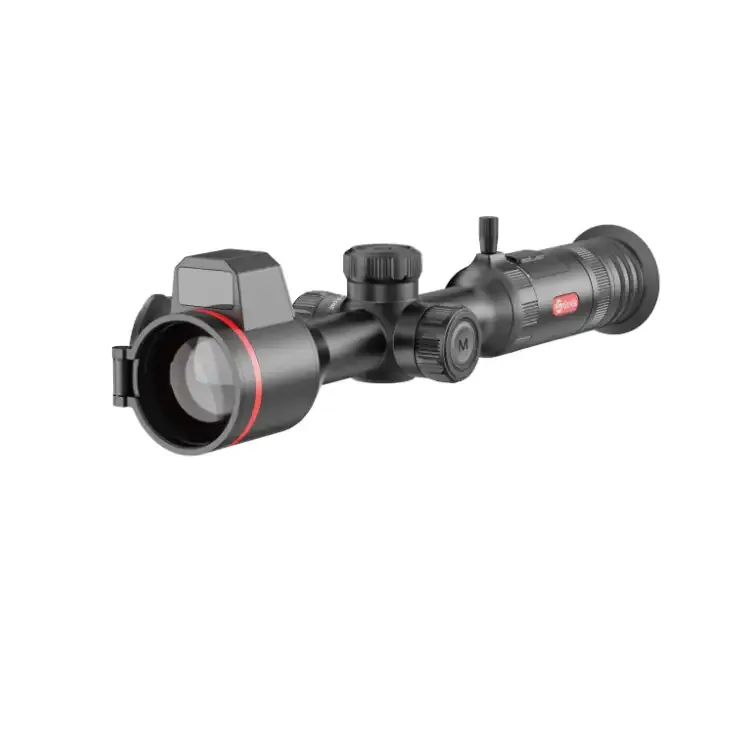

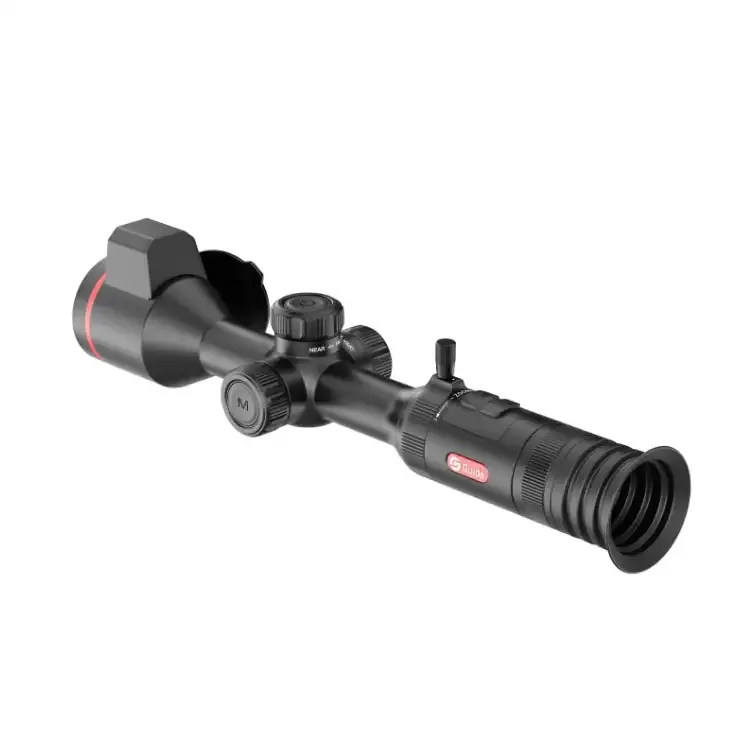

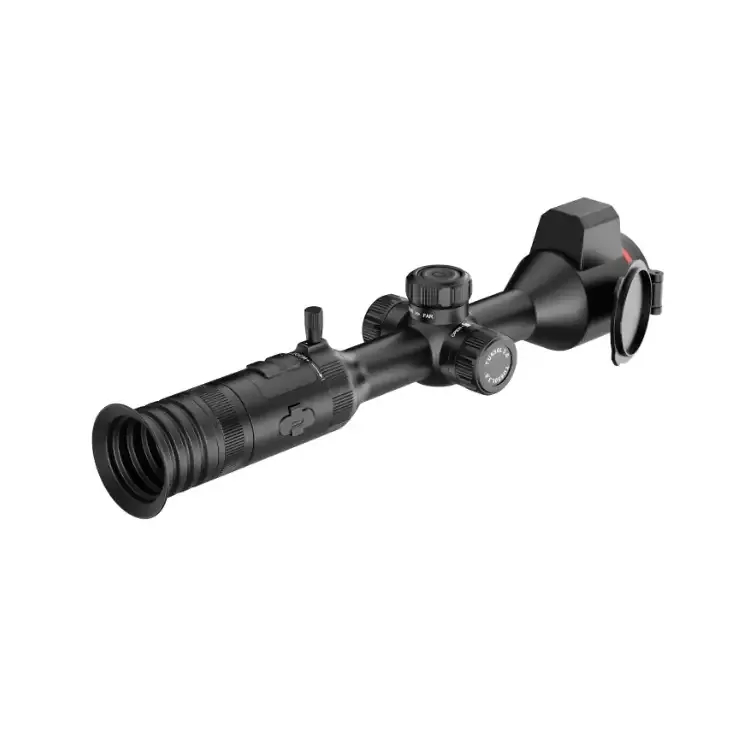

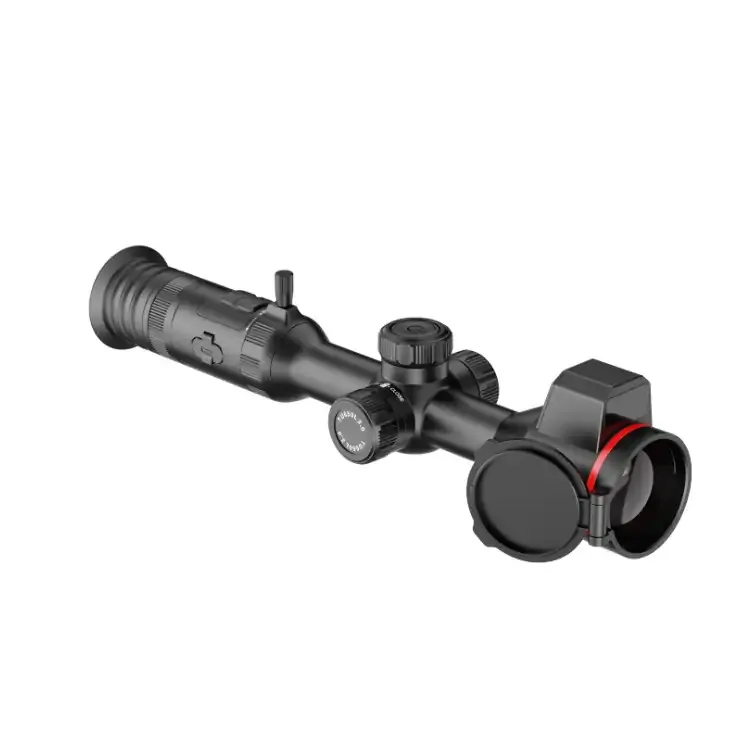

Guide TU650L 3.0 Thermal Scope



The TU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, longrange solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.



Features

Powered by next-gen sensors and the Hyper-light algorithm, the product boosts image quality on multiple levels through improved clarity, reduced noise, optimized contrast, and enhanced resolution of fine details.





The innovative shutterless 3.0 technology eliminates the clicking sound and image freezing, ensuring uninterrupted real-time footage during actual hunts, in case any shots are lost or missed during calibration.

Note: The shutter module has been retained to ensure high image quality during startup and under significant temperature variations.



Specifications

Resolution    640×512@12μm

NETD    18mK

Frame rate    50 Hz

Objective lens    50mm, F1.0

FOV @100m    14×9m

Magnification    3.9x~31.2x

Detection range    2600m

Display   0.49'' AMOLED 1920×1080

Color palettes    White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia

Eye relief: 48mm; Diopter -5 to +5;

Zoom: 14x

Laser rangefinder    1500m

WIFI    2.4G, 5G

Standard 30 mm Tube

Photo + Video (Audio recording included)

Memory capacity    128GB

18500 ×1 Battery (Built-in) and 18650 ×2 Battery (External)

Operating time    12 hours

Weight   815g

Size   377×89×82mm



What's in the box:
Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger,  5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
