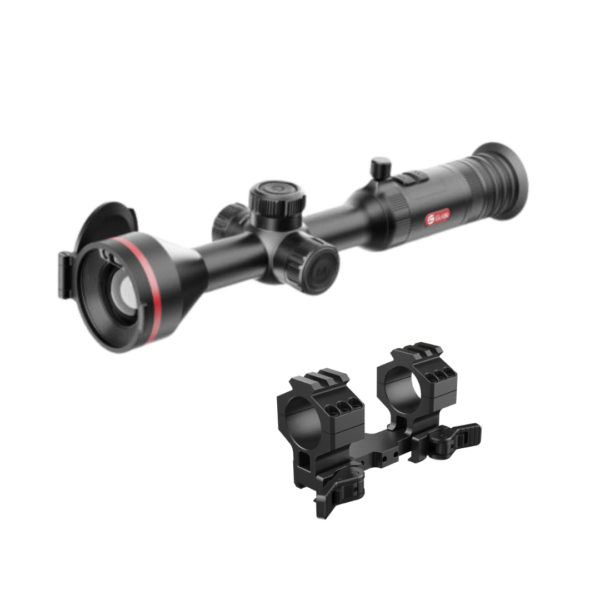

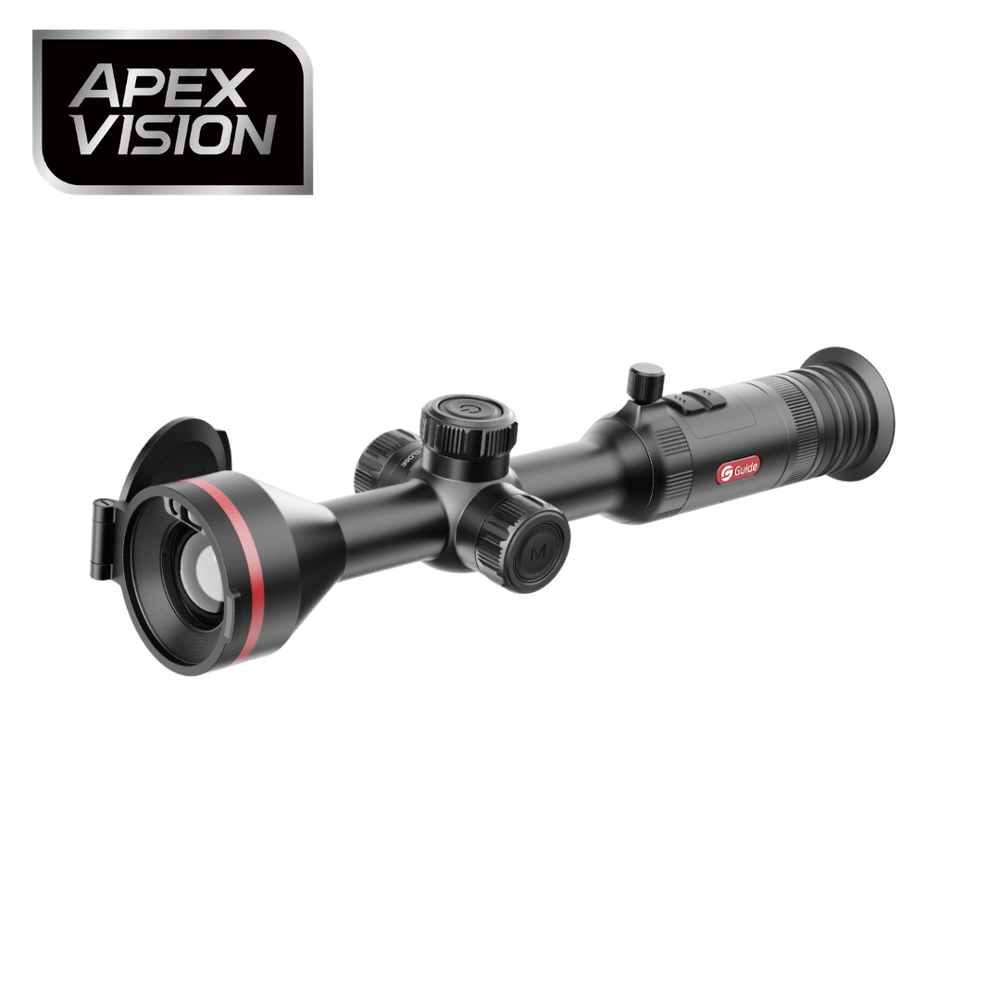

Guide TU650LS Thermal Scope with LRF



The Guide TU650LS Thermal Scope with LRF is a premium long-range thermal riflescope designed for hunters and professional pest controllers who demand exceptional thermal detail, extended detection capability and integrated ranging. As part of Guide’s TU Pro 3.0 series, the TU650LS combines a 640 × 512 thermal sensor, 50mm F1.0 lens, 15mK NETD sensitivity and integrated 1200m laser rangefinder in a rugged, field-ready platform.



Built for Long-Range Thermal Performance

The 50mm objective lens is designed to maximise thermal detection and identification at extended distances, with a quoted detection range of up to 2,600 metres. The 640 × 512, 12μm sensor and <15mK NETD provide excellent sensitivity for distinguishing heat signatures in low-contrast conditions.



Integrated 1200m Laser Rangefinder

The TU650LS incorporates its laser rangefinder directly into the lens assembly, providing distance measurements out to 1,200 metres. This eliminates the need for a separate rangefinder and keeps ranging information within the thermal optic. The system also incorporates a ballistic calculator for improved long-range shooting calculations.



High-Resolution 2560 × 2560 Display

A large 1.03-inch 2560 × 2560 AMOLED display takes advantage of the sensor's high-resolution thermal imagery, while the 3.7× to 29.6× magnification range provides flexibility from closer-range observation through to extended-distance target identification.



Features

640 × 512 thermal resolution

12μm pixel pitch

<15mK NETD

50mm F1.0 objective lens

Up to 2,600m thermal detection range

Integrated 1,200m laser rangefinder

Ballistic calculator

3.7×–29.6× magnification

2560 × 2560, 1.03" AMOLED display

50Hz frame rate

Shutterless thermal technology

Dual-band 2.4G/5G Wi-Fi

Photo, video and audio recording

Up to 14-hour battery life

IP68 protection

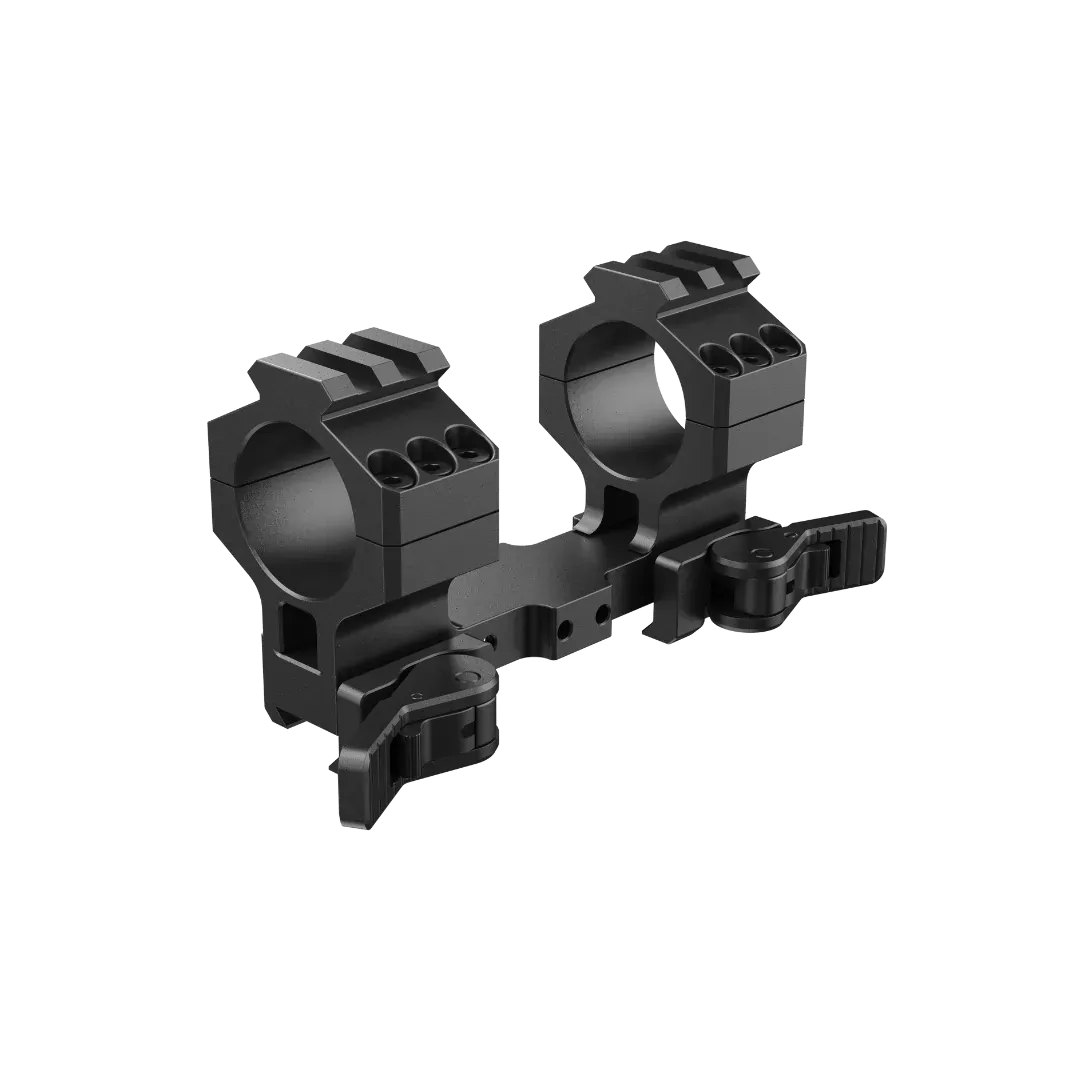

Quick-release scope mount included



Designed for Australian Hunting

With its combination of a large 50mm lens, high-sensitivity 640 × 512 sensor and integrated LRF, the TU650LS is particularly suited to open-country hunting, fox control, pig hunting and long-range observation where extended thermal detection is important.

At approximately 935g, it is a substantial optic, but the additional size provides the long-range thermal capability that hunters looking for maximum reach will appreciate.
