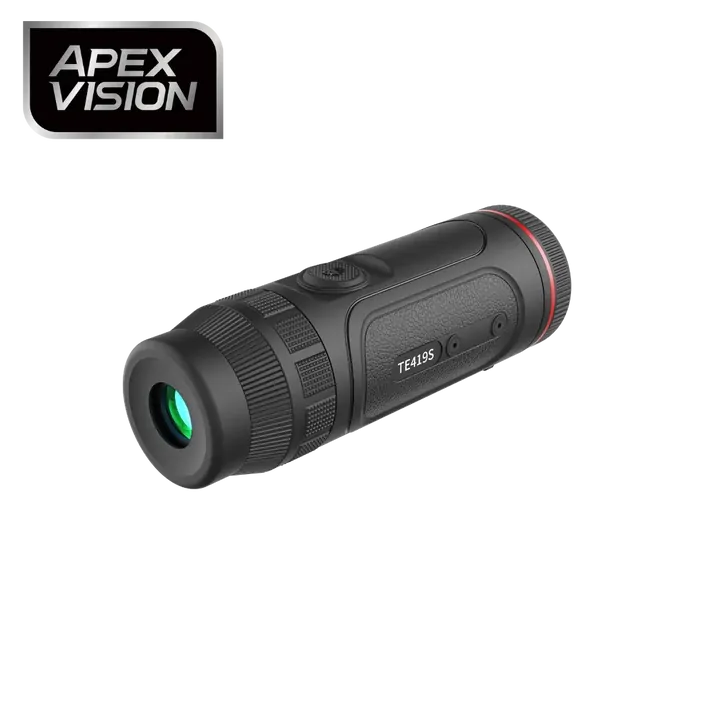

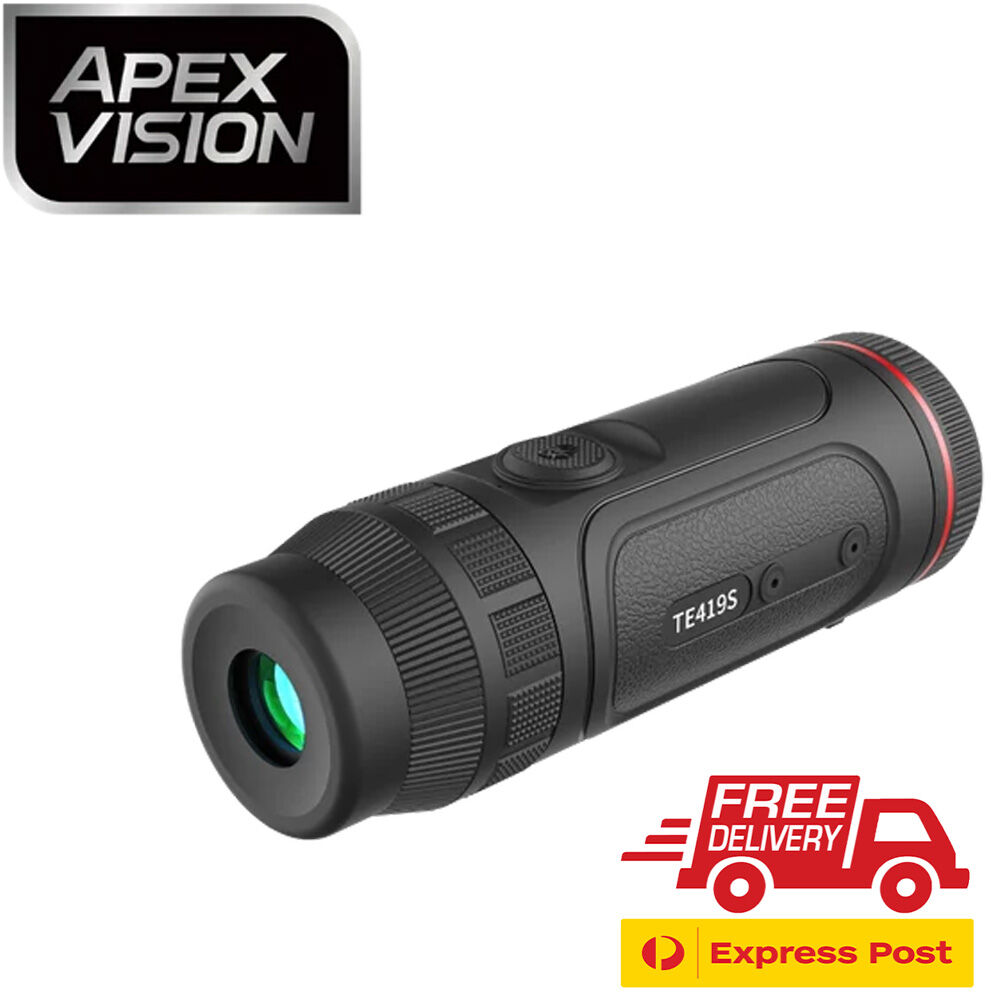

Guide TE419S Thermal Monocular



Discover heat signatures in the dark with the Guide TE419S Thermal Monocular, a compact and lightweight thermal imaging device designed for Australian hunters, property owners and outdoor enthusiasts. Combining a high-sensitivity 400×300 thermal sensor with Guide's advanced ApexVision S1 image processing, the TE419S delivers detailed thermal imagery in a portable handheld design.

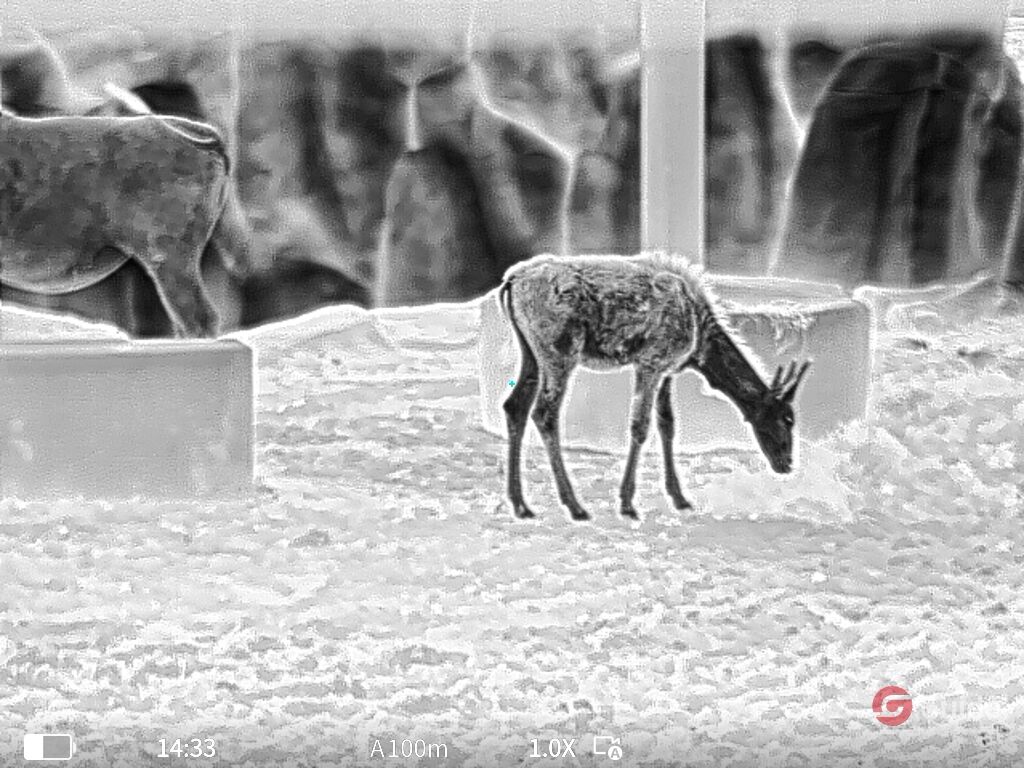

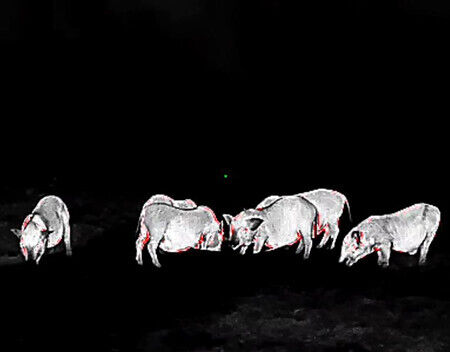

Featuring a 19mm F1.0 lens, thermal sensitivity of 15mK and a detection range of up to 1,000 metres, the TE419S is ideal for scanning paddocks, checking treelines and observing wildlife in low-light conditions. Its wide field of view makes it particularly useful for searching mixed terrain and bushland.

Weighing just 288g, the Guide TE419S is easy to carry on extended hunting trips, while its built-in rechargeable battery, fast-charging capability and IP67-rated protection make it a practical companion for demanding outdoor conditions.



Specifications

400×300 @12μmResolution

Detection range 1000m

288g Ultra-Lightweight

NETD 15mK

Frame rate 50Hz

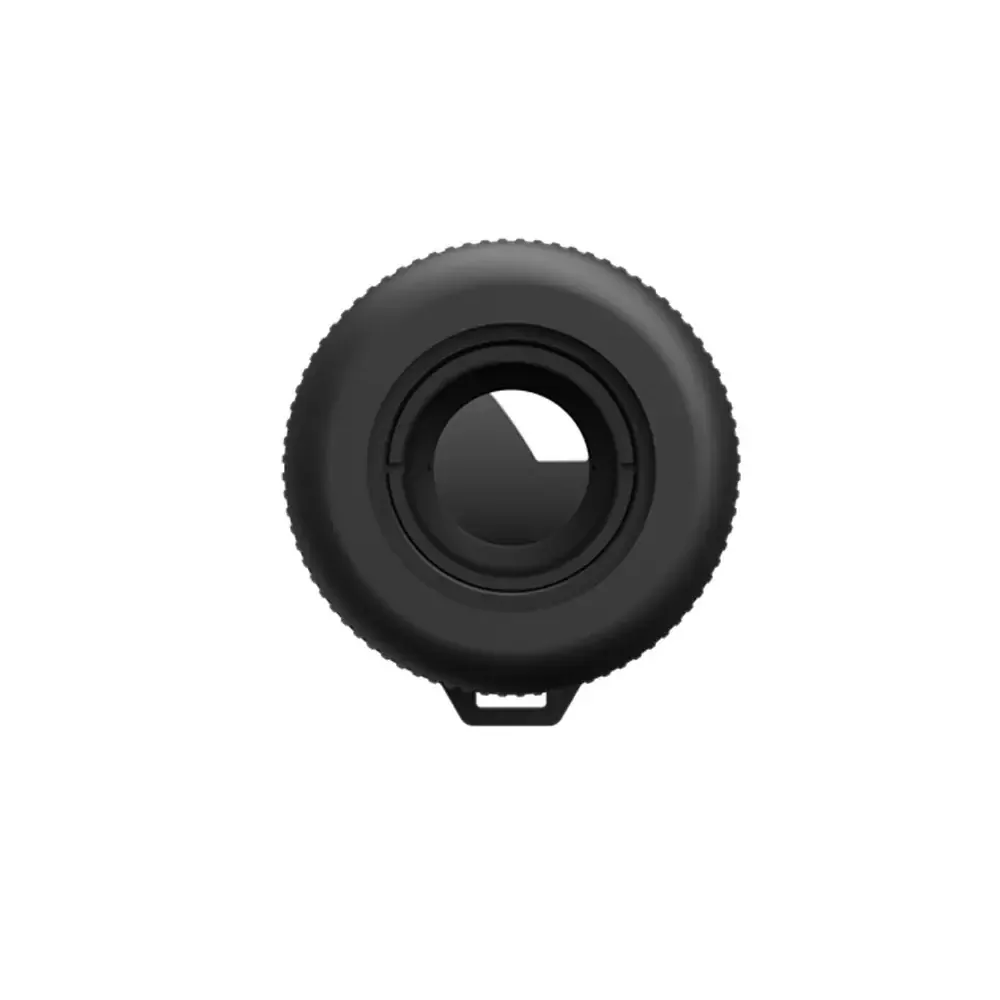

Objective lens 19mm, F0.9

Field of view 25m @100m

Magnification 1.4x~5.6x

WIFI 2.4G, 5G

Display type 0.32'' AMOLED 800×600

Battery type Built-in Battery

Operating time 5 hours (Support 20W quick charging)

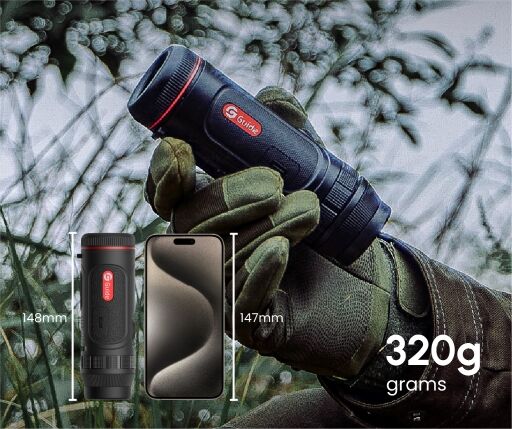

Size 14.8 x 4.7 × 4.7cm



Frequently Asked Questions



What is the detection range of the Guide TE419S?

The manufacturer-listed detection range is up to 1,000 metres, although practical identification distances will vary with conditions and target size.

Does the Guide TE419S record video?

Yes. It supports video and audio recording, with 64GB of internal storage.

Is the Guide TE419S waterproof?

It has an IP67 protection rating for dust and water resistance, making it suitable for outdoor environments when used within the manufacturer's guidelines.

How long does the battery last?

The built-in rechargeable battery provides up to approximately five hours of operating time. Actual runtime depends on settings and usage.

Can I use WiFi?

Yes you can it comes with Dual-band Wi-Fi and Bluetooth

Can I roof mount it and run power direct.

Yes, you can run an external power supply to the Guide TE425S Thermal Monocular using its USB-C port while operating the device and comes. Great for roof mounting
